MACHINE
Machines in zone A Factory
High-precision machines and high- skilled operators trained by Japanese Manufacturers make our customers to the high satisfaction.

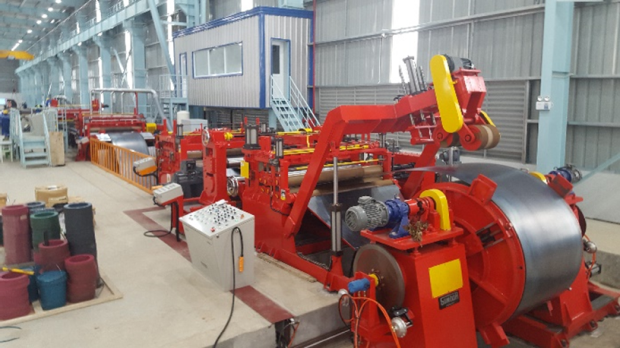

1. Cut-to-Length Leveller line1 (KOHAN)
- Line No. : 1
- Manufacturer : KOHAN Machinery
- Shearing Method : Fly Die Set Shear
- Thickness Range : 4.5 mm ~ 12.7 mm
- Width Range : 900 mm ~ 1,860 mm
- Length range : 1,000 mm ~ 6,500 mm
2. Cut-to-Length Leveller line2 (SONODA)
- Line No. : 2
- Manufacturer : SONODA Engineering
- Shearing Method : Up Cut Shear
- Thickness Range : 1.2 mm ~ 6.0 mm
- Width Range : 900 mm ~ 1,860 mm
- Length range : 1,000 mm ~ 6,500 mm

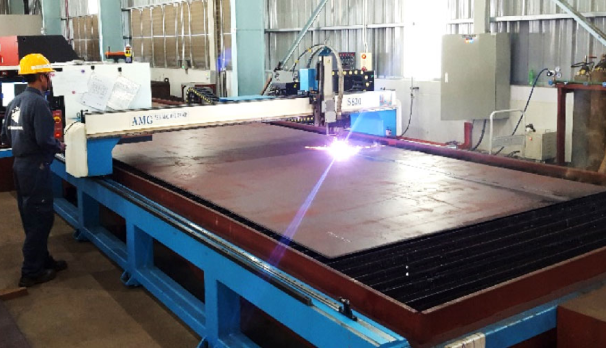

3. CNC Plasma Cutter
- Manufacturer : AMG
- Thickness Range : Up to 32 mm
- Width Range : 2400 mm
- Length range : 12,000 mm

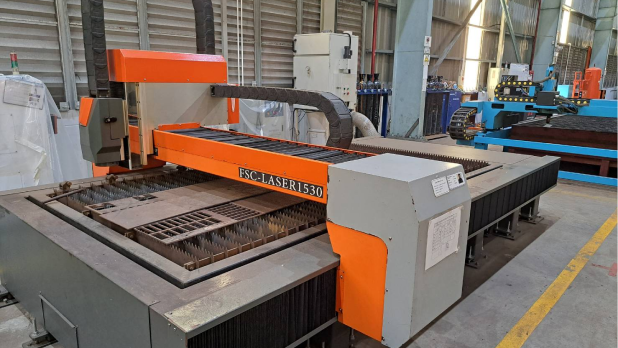

4. CNC Laser Cutter
- Manufacturer : AMG
- Thickness Range: 1.00mm to 6.00mm
- Area Range: Up to 5' x 10'

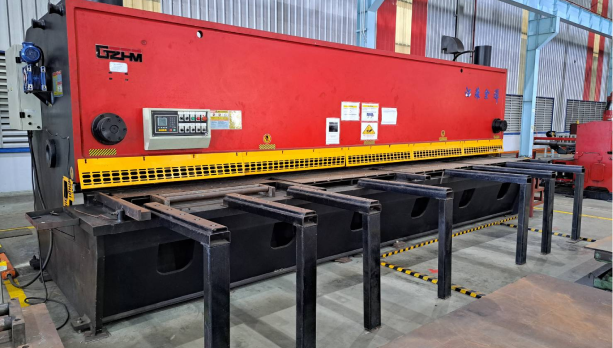

5. Shearing 2
- Shear No. : 2
- Shearing Method : Press Shear
- Thickness Range : 1.2 mm ~ 13.0 mm
- Width Range : Up to 950 mm
- Length range : Up to 6 M

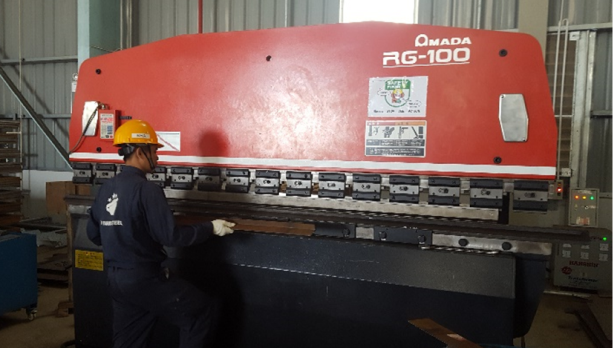

6. Bending 1
- Bending No. : 1
- Manufacturer : AMADA
- Bending Method : Press Down
- Thickness Range : 1.2 mm ~ 13.0 mm
- Length range : Up to 3 M

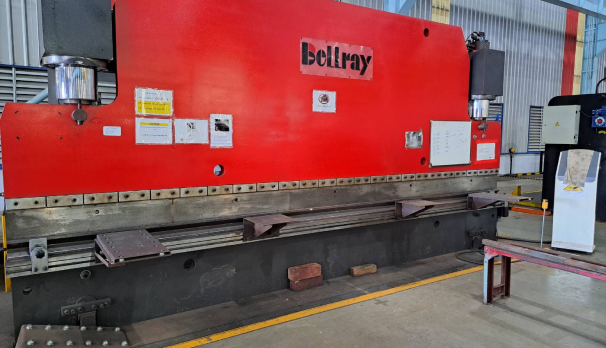

7. Bending 2
- Bending No. : 2
- Bending Method : Press Down
- Thickness Range : 1.2 mm ~ 13.0 mm
- Length range : Up to 6 M
8. Other processes

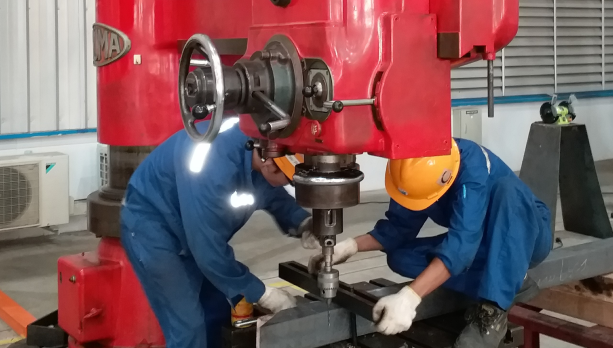

- Radial Drilling,
- Gas cutting,
- Arc/TIG welding
- Painting
- Bearing
